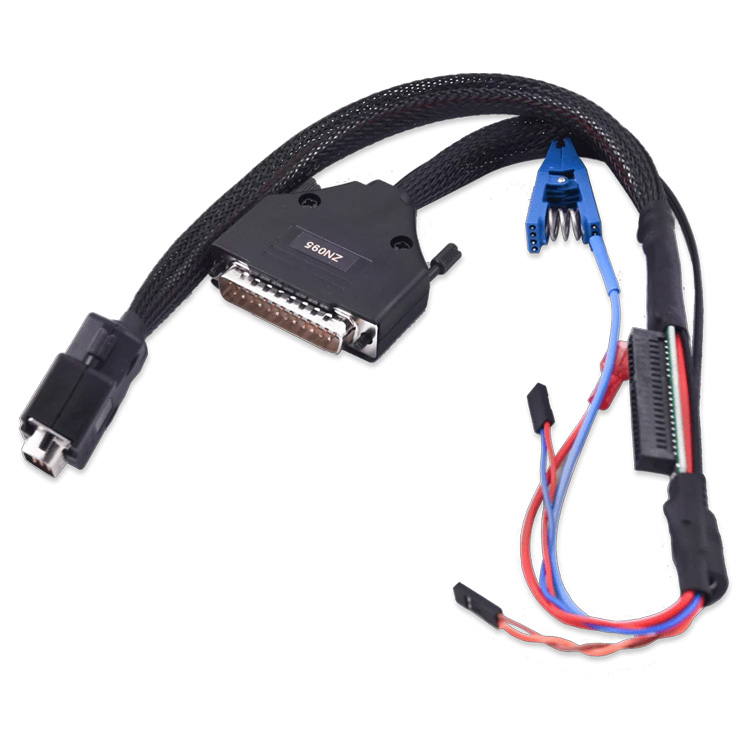

ZN095 - BDC2 Bench Connection Cable for BMW Vehicles

Description

ZN095 - BDC2 Bench Connection Cable for BMW Vehicles

This cable allows you to add spare keys to BMW F-Series and G-Series vehicles equipped with BDC2 modules.

• No soldering required.
• Easy and safe connection, only using clips and plugs.
• Spare key addition via OBD can be done after first completing the procedure on the bench.
• Once the procedure is done successfully on the bench, adding more keys can be done anytime after that via OBD.

Functionality:

• Establishing a connection between AVDI and the BDC2 module via the Abrites Distribution Box Set to add a spare key to the vehicle (working key required).

Supported models are the ones supported by the BN020 license:

Any software version of BDC02 installed in

• M5 (F90)
• 3 Series (G30)
• 5 Series (G30/G31/G38)
• 4 Series (G80/G81/82)
• 6 series (G32)
• 7 Series (G11/G12)
• X3/X4, IX3 (F97/F98, G01/G02, G08)
• M8 (F91/F92/F93)
• 8 Series (G14/G15/G16)

Supported ECUs/software versions:

• swfl_00001df4.106_020_030
• swfl_00005fa8.108_020_020
• swfl_00005fa8.109_051_010
• swfl_00005fa8.109_067_010
• swfl_00001df4.100_062_020
• swfl_00005fa8.108_030_010
• swfl_00005fa8.109_062_010
• swfl_00001df4.100_150_050
• swfl_00005fa8.109_049_041
• swfl_00005fa8.109_063_040
• swfl_00001df4.102_050_040
• swfl_00005fa8.109_050_050
• swfl_00005fa8.109_065_010

Supported years:

• Usually BDC02 is installed in most of the above mentioned models up to around 2021, but there are certainly some later cars still using this generation.

Required hardware and software:

• ABRITES Vehicle Diagnostics Interface (AVDI)
• ABRITES Distribution Box Set (ZN151)
• Protag (ZN003)
• Key programming for BMW G-Series and F-Series BDC2 vehicles license (BN020)
